MSPA | COCOON | Verto Series | Textile-inspired Design | Rigid Hot Tub & Spa | Upto 6 Person
6-person Verto Series spa with 10 cm EPE foam walls, 138 air jets, app control, and insulated textile-style exterior

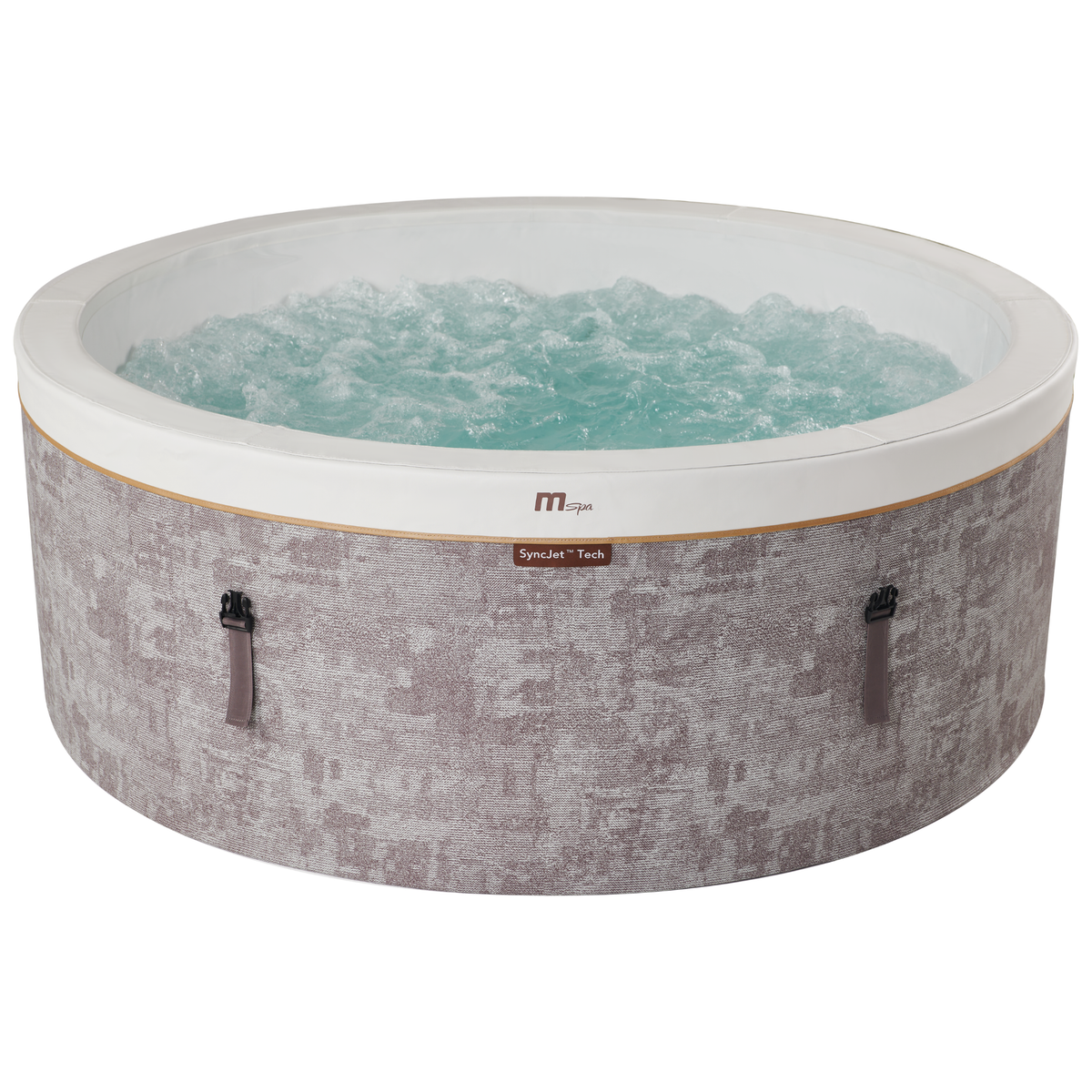

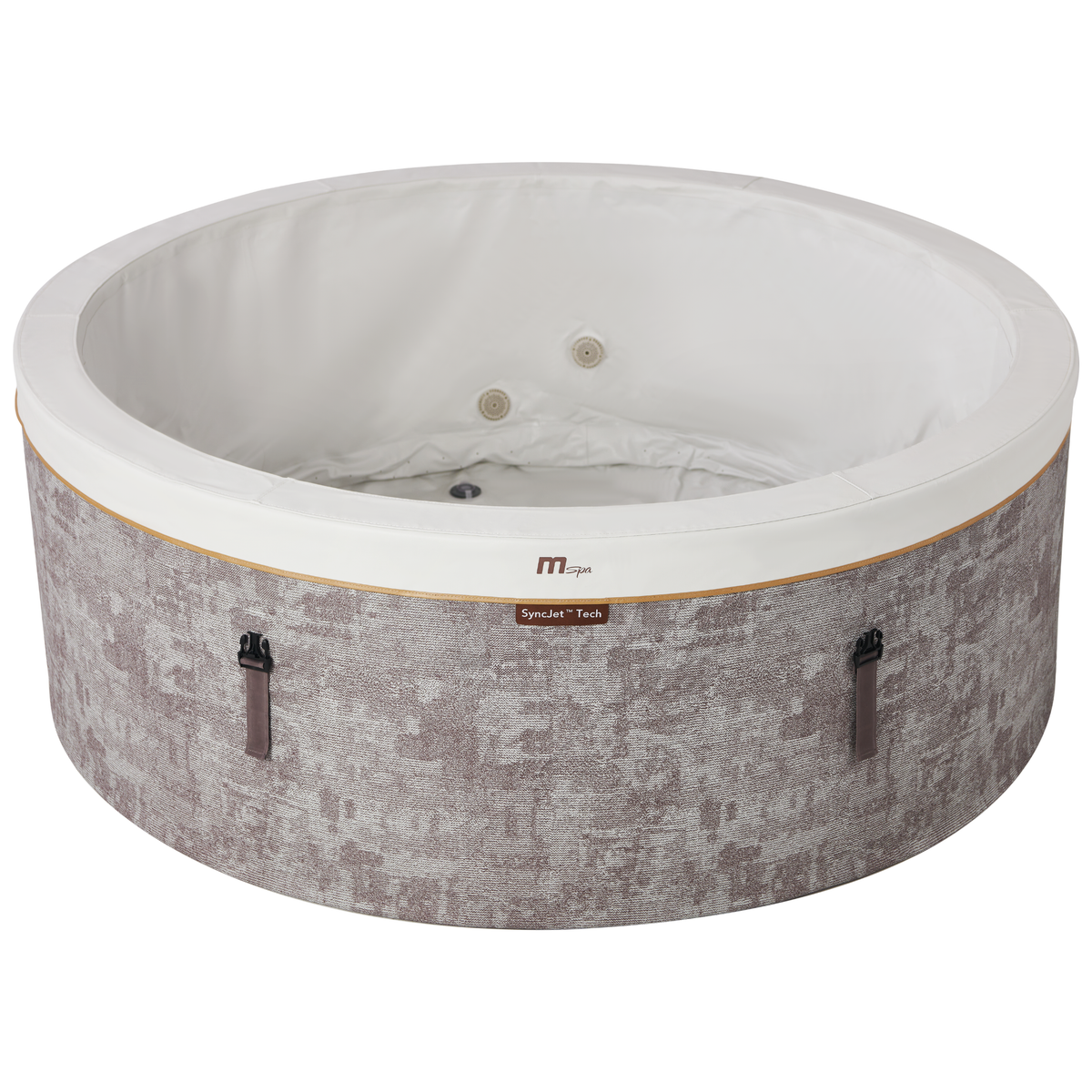

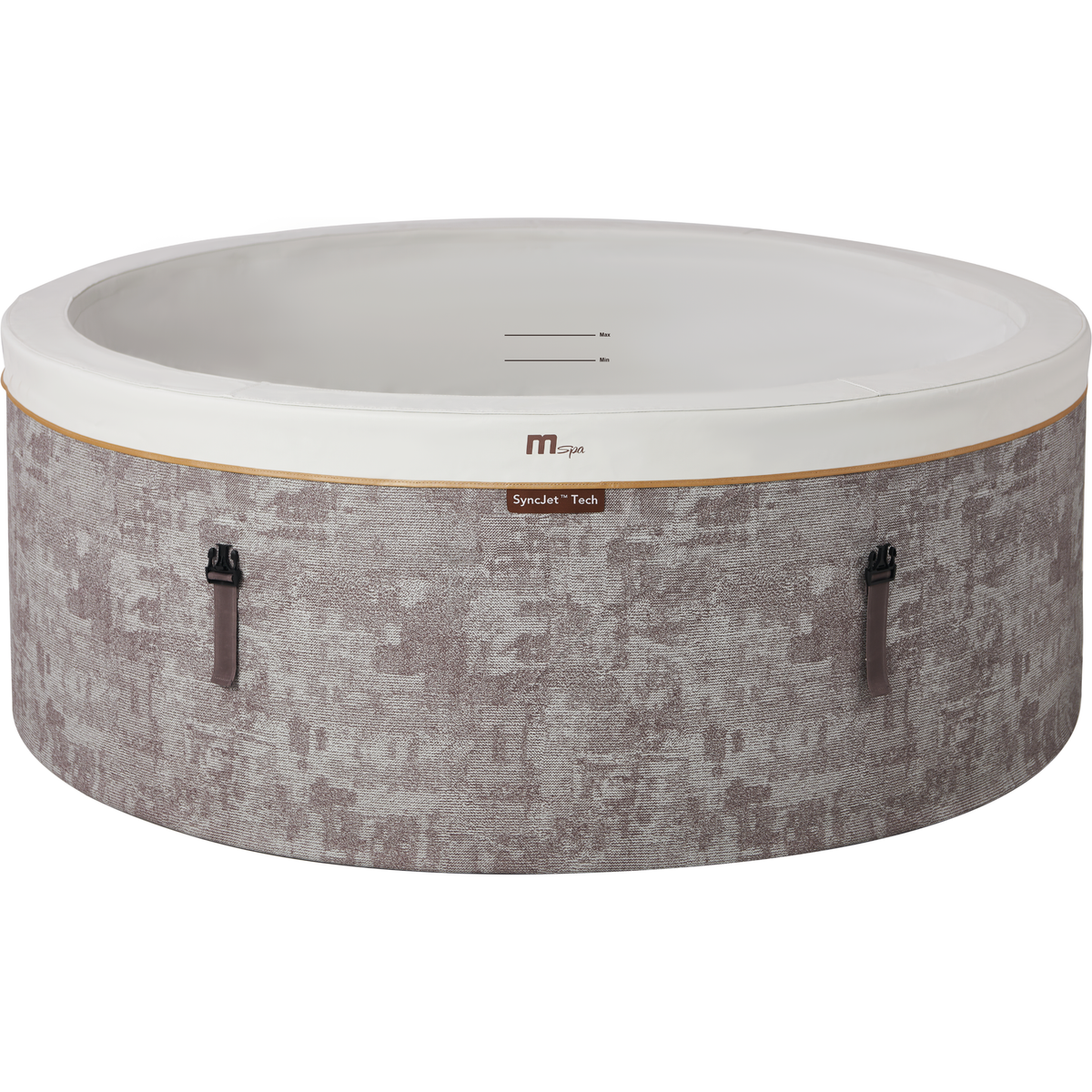

The MSpa Cocoon is a six-person Verto Series spa built around dense EPE foam panels rather than a conventional inflatable wall. The 10 cm-thick foam structure gives the spa a defined rigid shape while keeping the body relatively lightweight for a six-person unit.

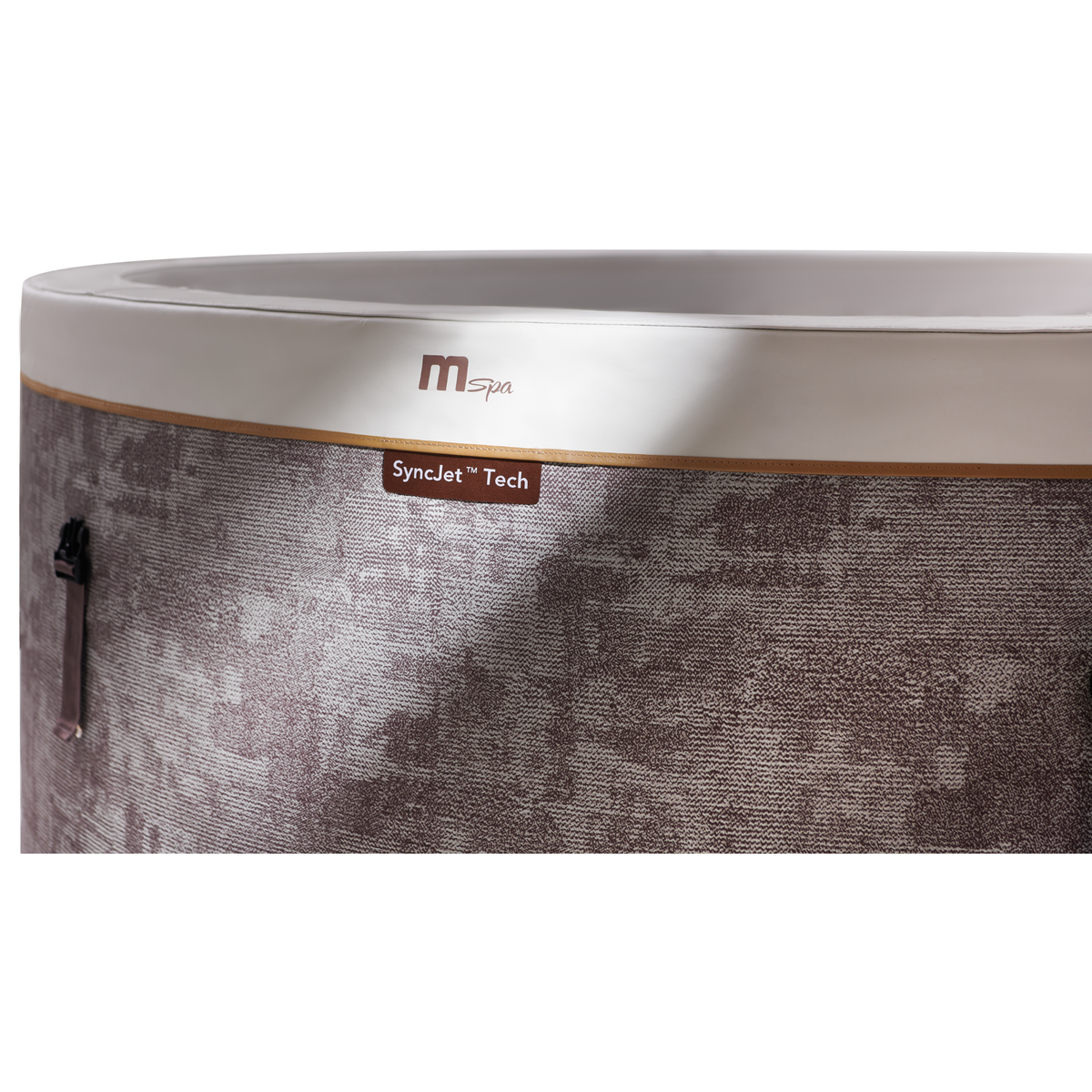

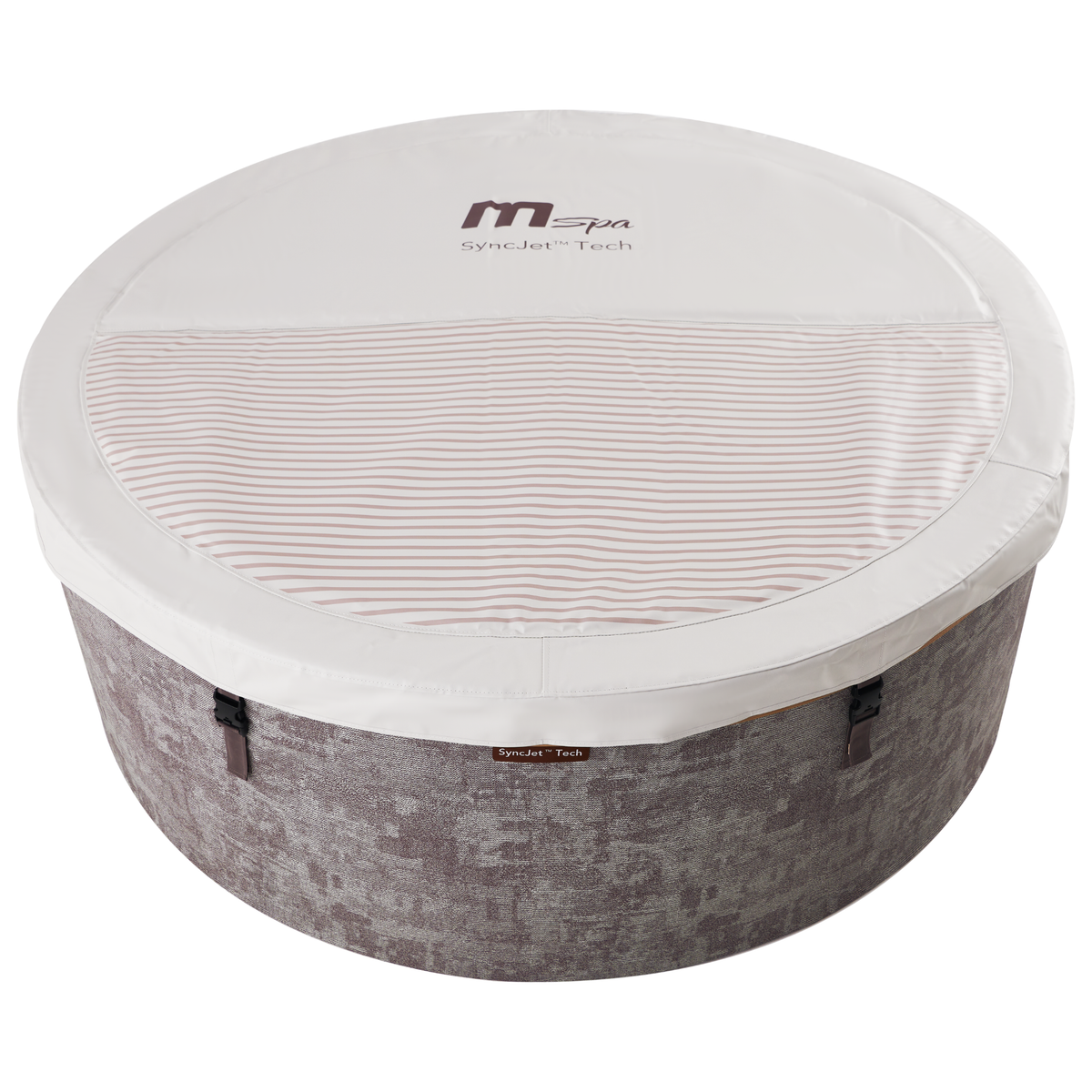

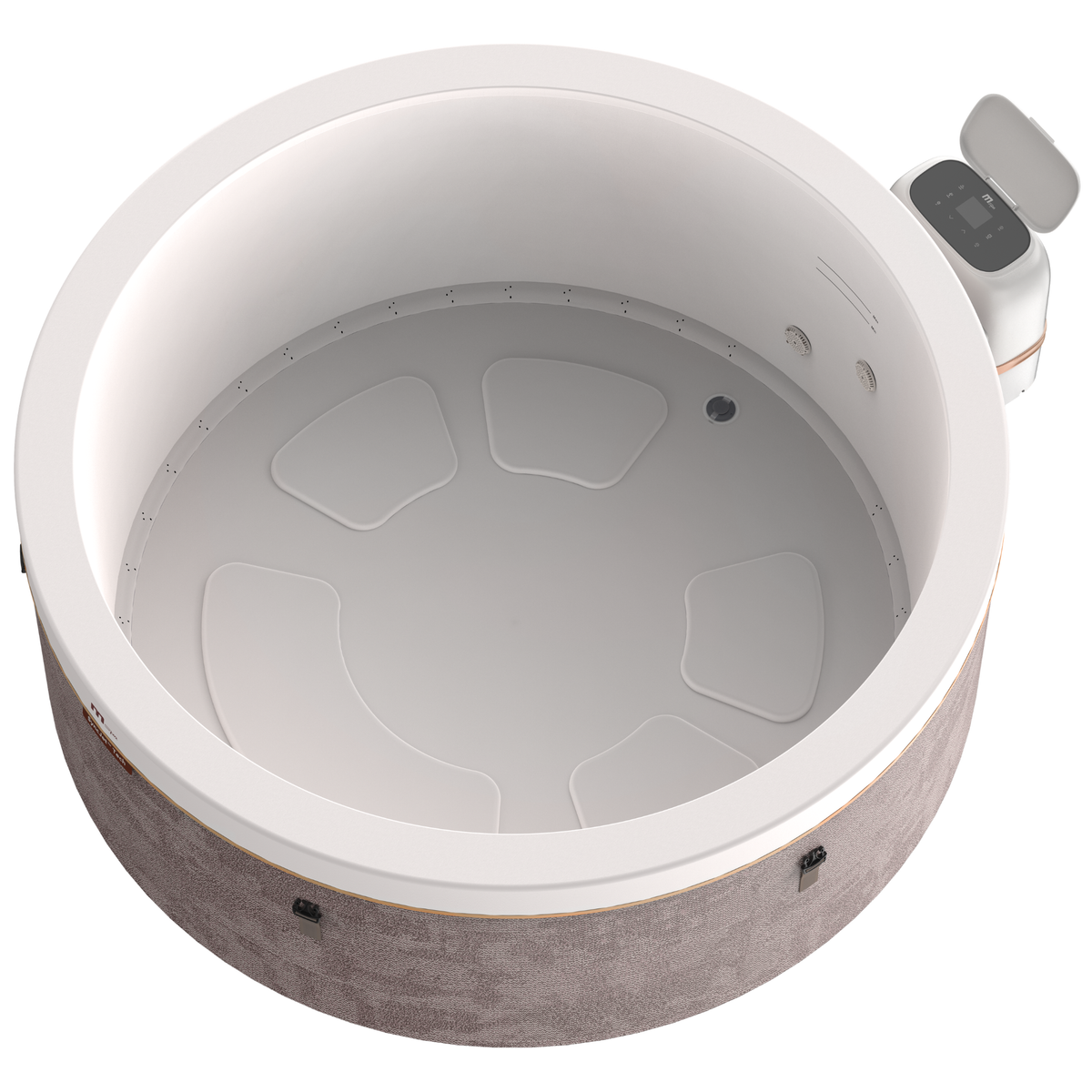

The Cocoon uses a textile-inspired exterior finish and an all-in-one control box paired with the MSpa Link 2.0 app. Heating, filtration, scheduling, and other spa functions can be managed through the integrated control platform.
The U.S.-specification model holds up to 224 gallons of water and uses 138 air jets powered by a three-level 700 W air system. Built-in anti-icing logic, smart filtration, UVC sanitization, and antibacterial liner material are also part of the configuration.
Key Features
- Capacity: Up to 6 adults.

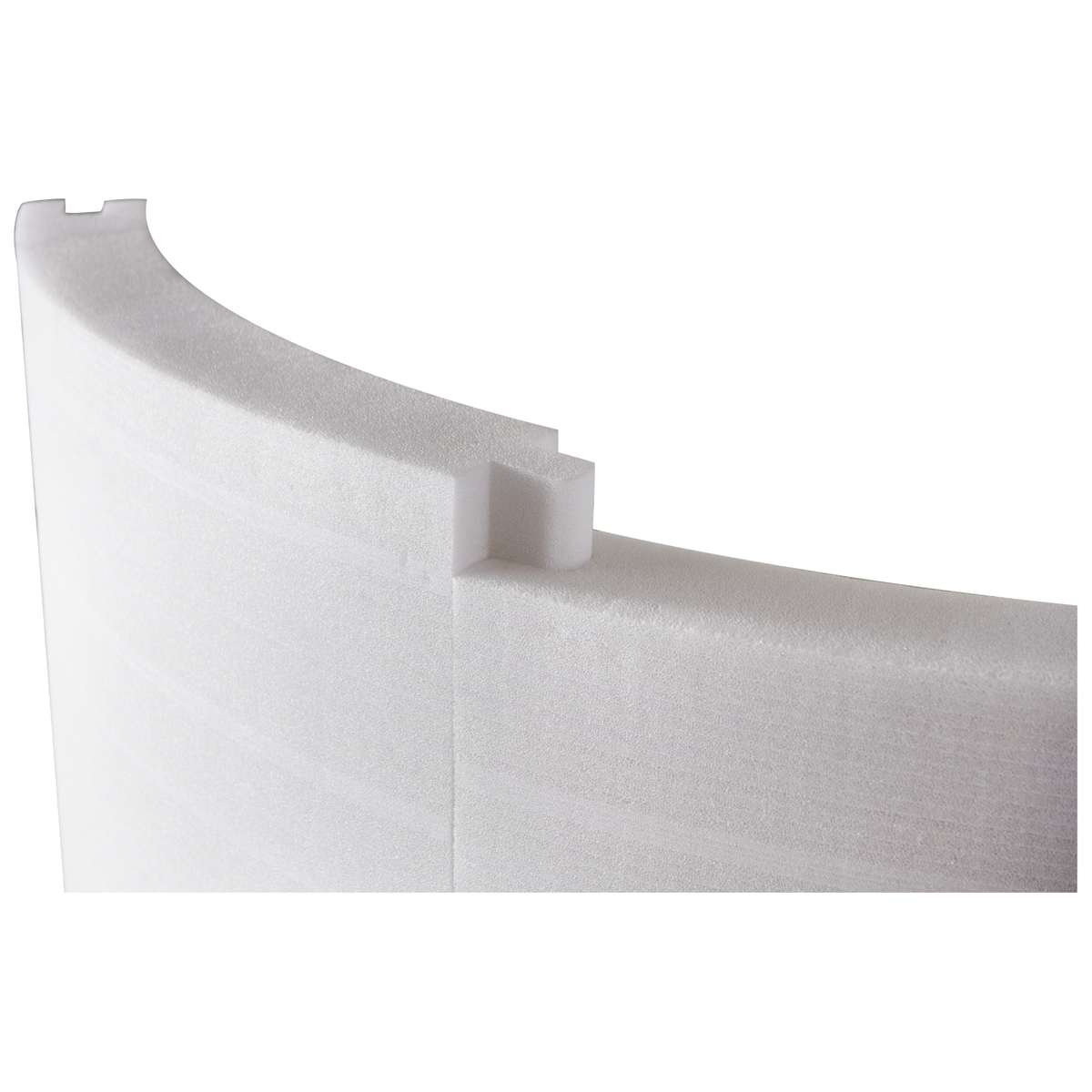

- Structure: 10 cm high-density EPE foam panel construction.

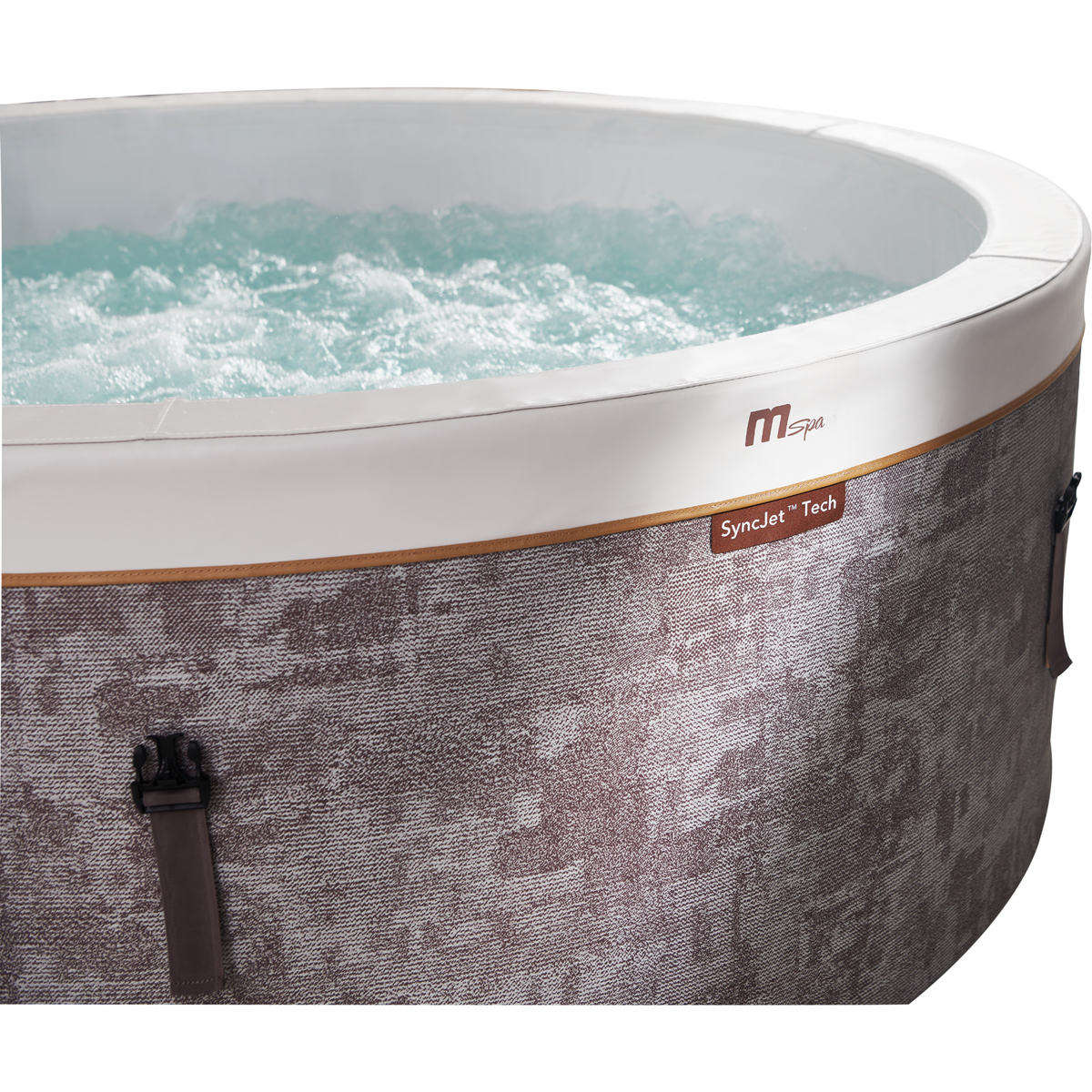

- Exterior: Textile-inspired finish.
- Controls: All-in-one control box and MSpa Link 2.0 app.
- Air system: 138 air jets.
- Air-jet levels: 300 W, 450 W, and 700 W.
- Cold-weather protection: Automatic anti-icing function.

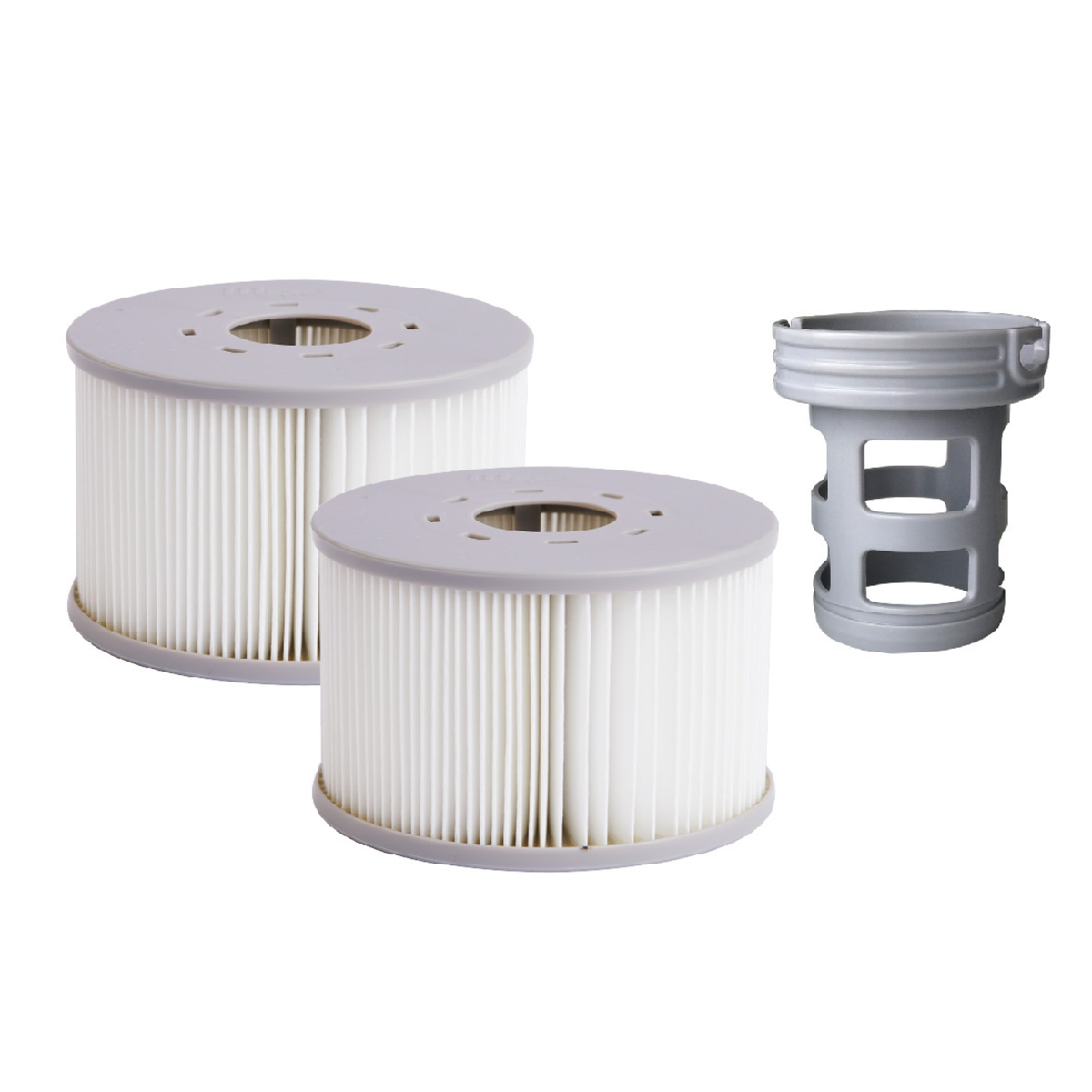

- Filtration: Smart-filtration reminder system.
- Water management: Built-in UVC sanitizing system.
- Safety: Child safety lock.
Product Specifications
| Item number | F-CO066WE |
|---|---|
| Height | 26" / 65 cm |
| Width | 70.9" / 180 cm |
| Net weight | 95.7 lb / 43.4 kg |
| Filled weight | 1,970 lb / 893 kg |
| Water capacity | 224 gal / 850 L |
| Control system | 110–120 V / 60 Hz |
| Heater | 1,350 W |
| Air-jet motor | 700 W; 300/450/700 W levels |
| Air jets | 138 |
| Water circulation | 1,800 L / 545 gal per hour |
| Maximum water temperature | 104°F / 40°C |
| Heat increase rate | 2.3–3.0°F per hour |
Setup & Placement
The foam-panel wall system is designed for two-person assembly without specialized tools. The rigid panels support the spa body while the control box and internal liner complete the water and equipment system.
At full capacity the spa weighs approximately 1,970 pounds before occupants are added, so installation requires a flat, stable supporting surface.
Warranty
Includes 12 months of limited coverage for electrical components and the spa pool, plus 24 months of limited coverage for the frame.
