RevX X-FLOW Cold Plunge Filtration System
Separate cold-plunge filtration module with 200 W pump, heat sink, 18 W UV, 20-micron 10-inch cartridge, 1-inch plumbing connections, and 110 V operation

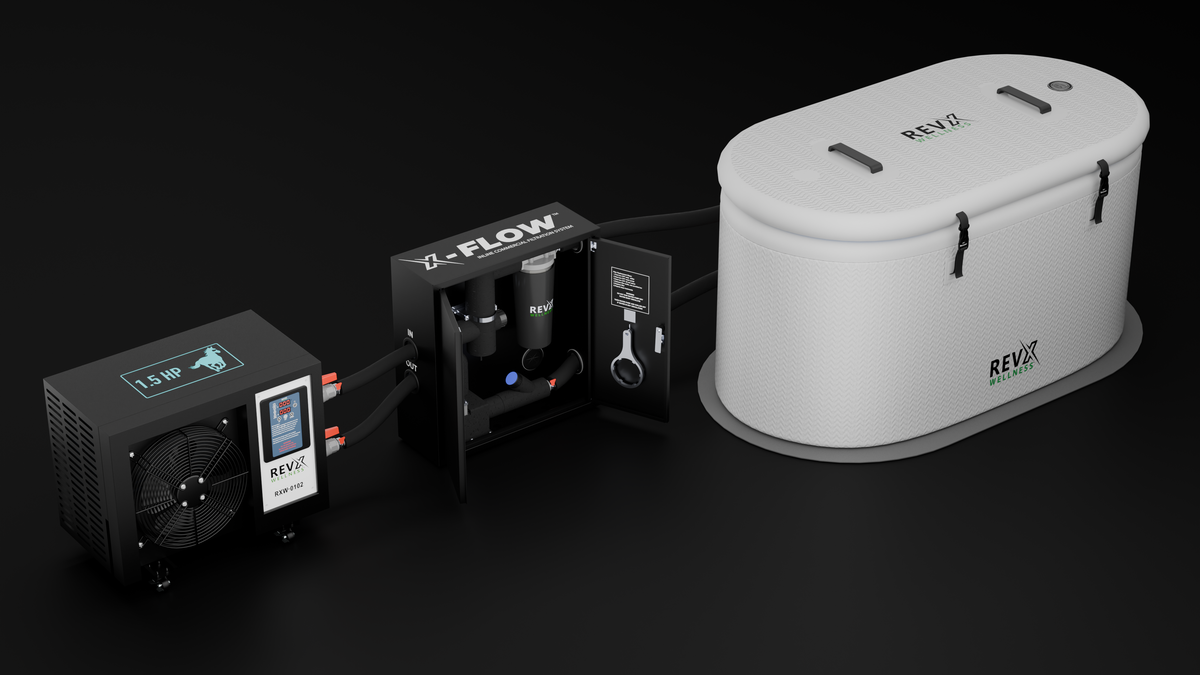

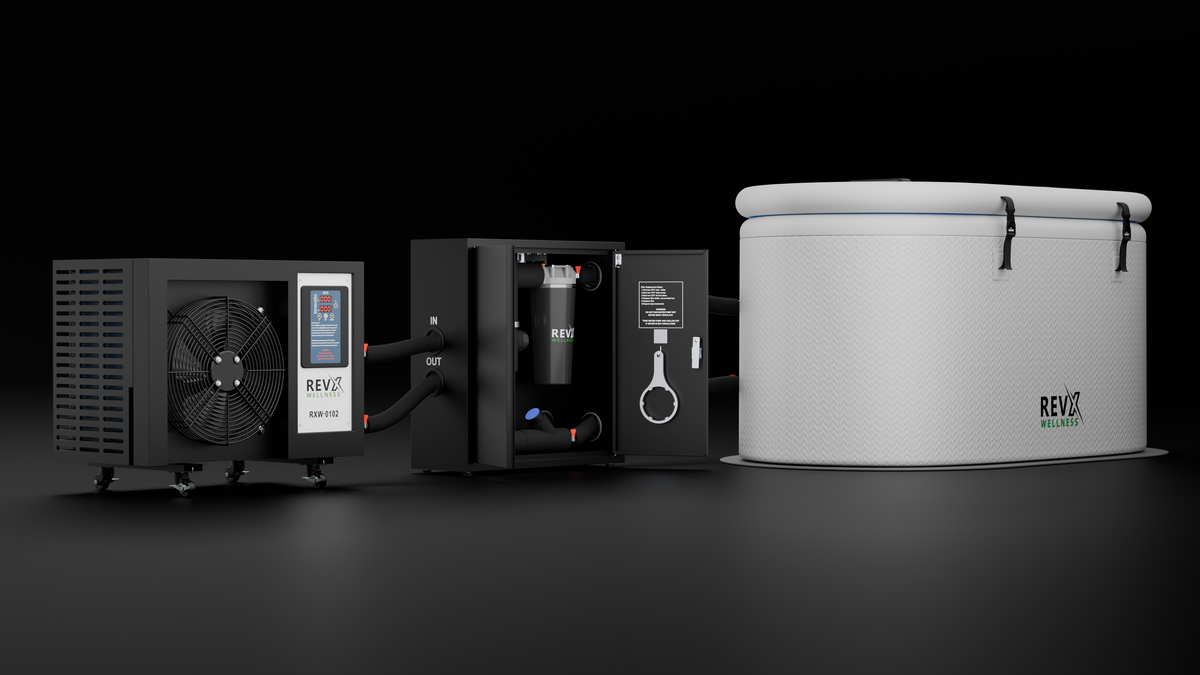

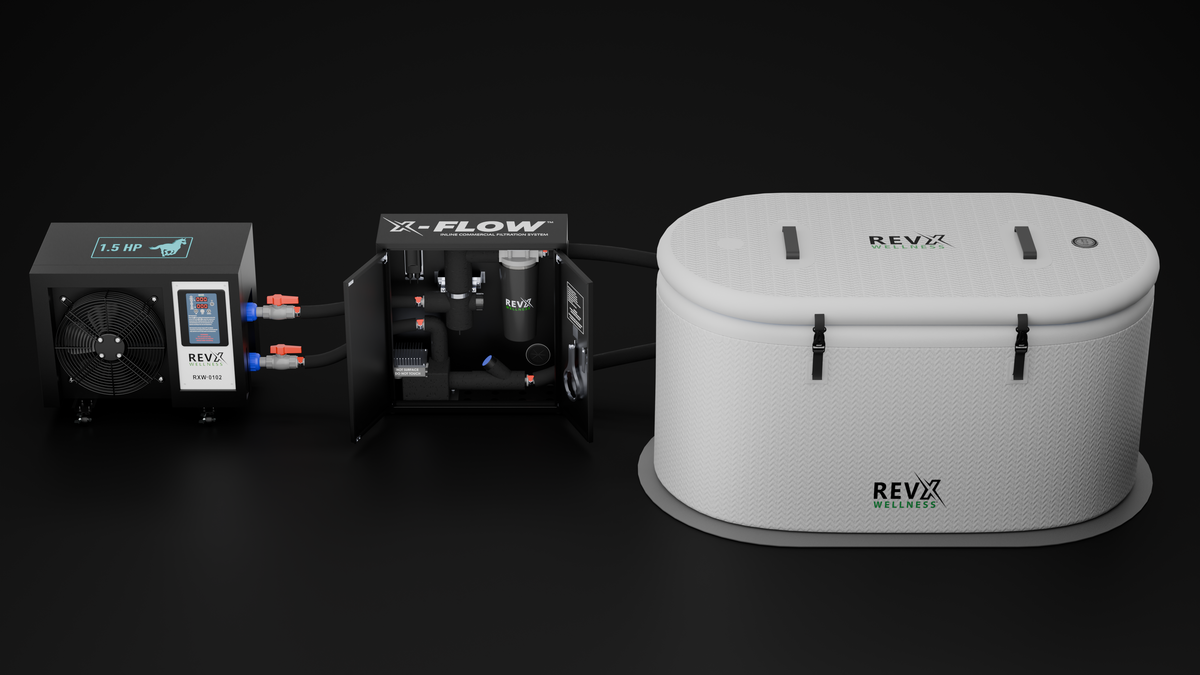

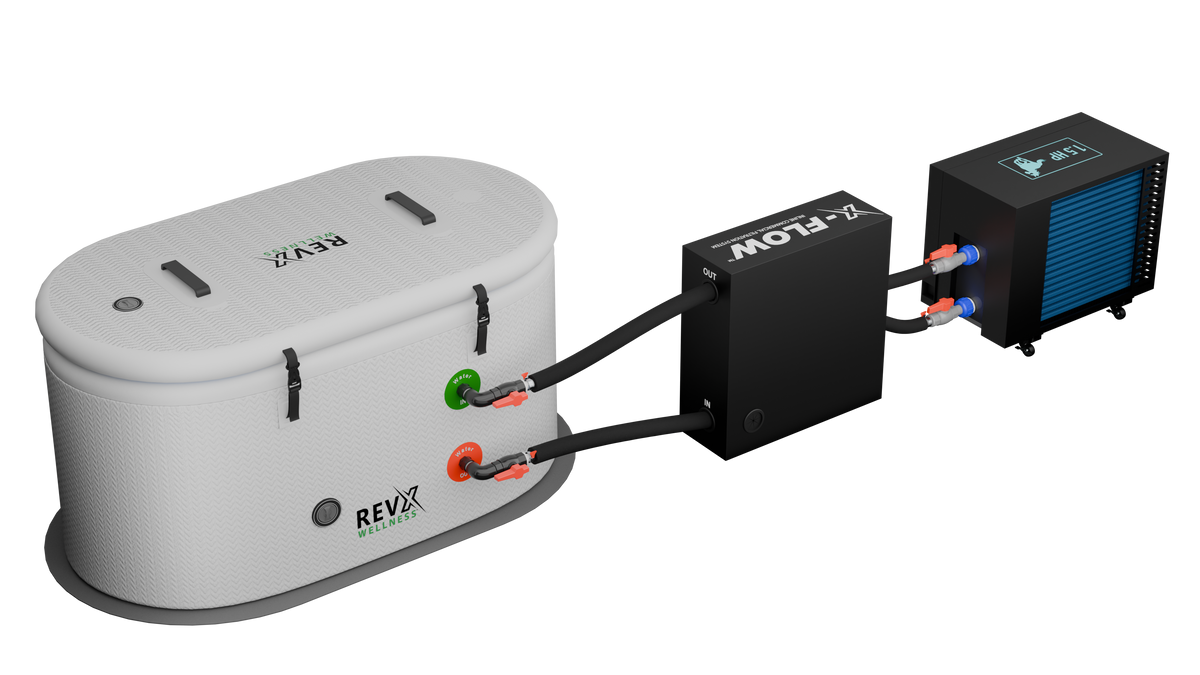

The RevX X-FLOW is a dedicated filtration module for cold plunges and ice baths. It keeps the water-circulation and sanitation hardware separate from the chiller so the filtration components remain accessible for service and maintenance.

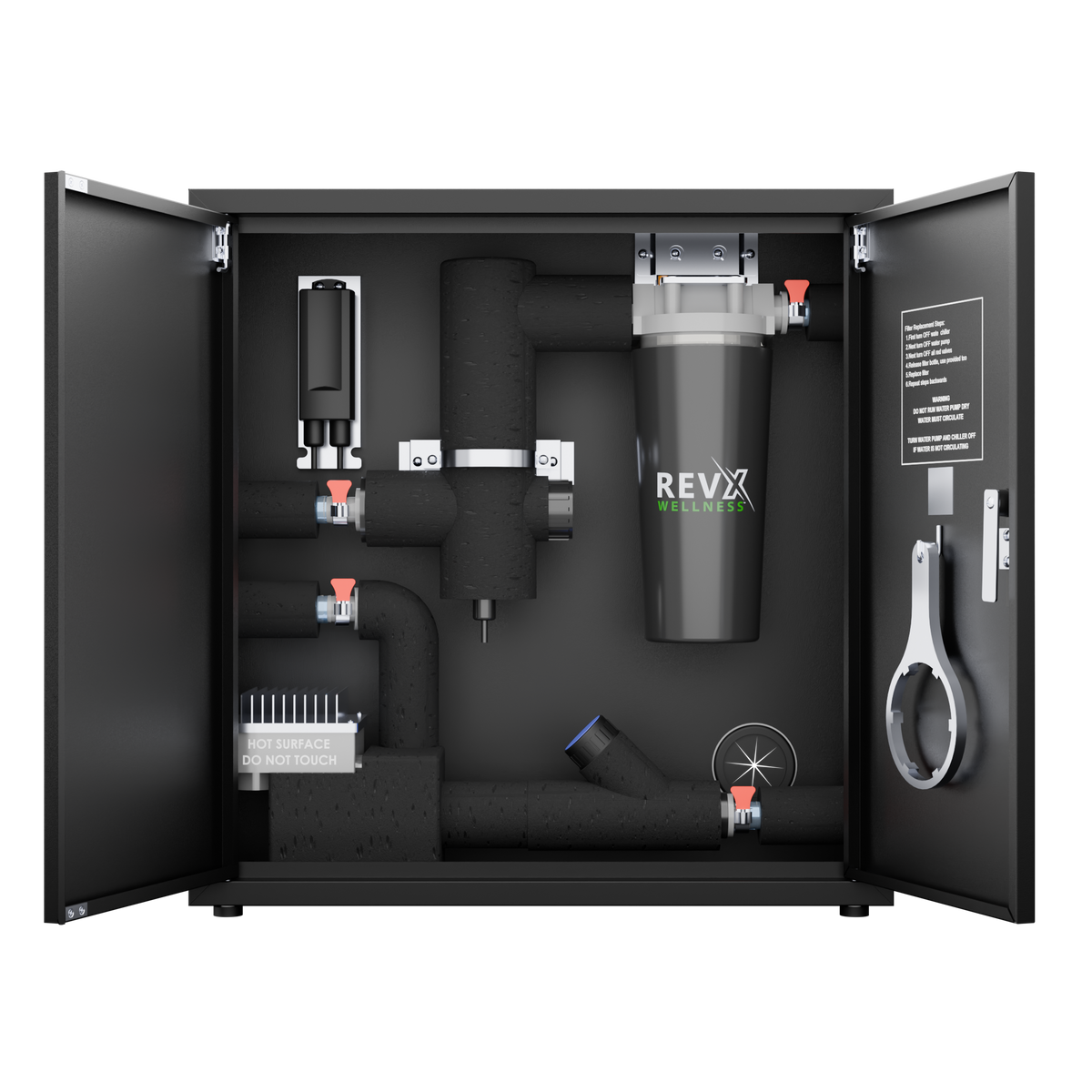

The system combines a 200 W water pump with an integrated heat sink, an 18 W UV unit, and a 20-micron pleated 10-inch sediment cartridge.
Universal one-inch barb connectors are used for plumbing integration. The X-FLOW uses two 110 V plugs—one for the pump and one for the UV unit—with a maximum combined draw of approximately 3 amps.
Filtration Hardware
- Pump: 200 W with integrated heat sink.
- UV: 18 W UV unit.
- Filter: 20-micron pleated cartridge.
- Cartridge size: 10 in.
- Connections: Universal 1 in plumbing barb connectors.
- Ingress rating: IPX4-rated components.
Electrical
| Power | 110 V |
|---|---|
| Plugs | 2: water pump + UV |
| Maximum combined draw | Approximately 3 A |
Maintenance
RevX recommends changing the filter cartridge approximately every 2–4 weeks depending on usage.
Installation

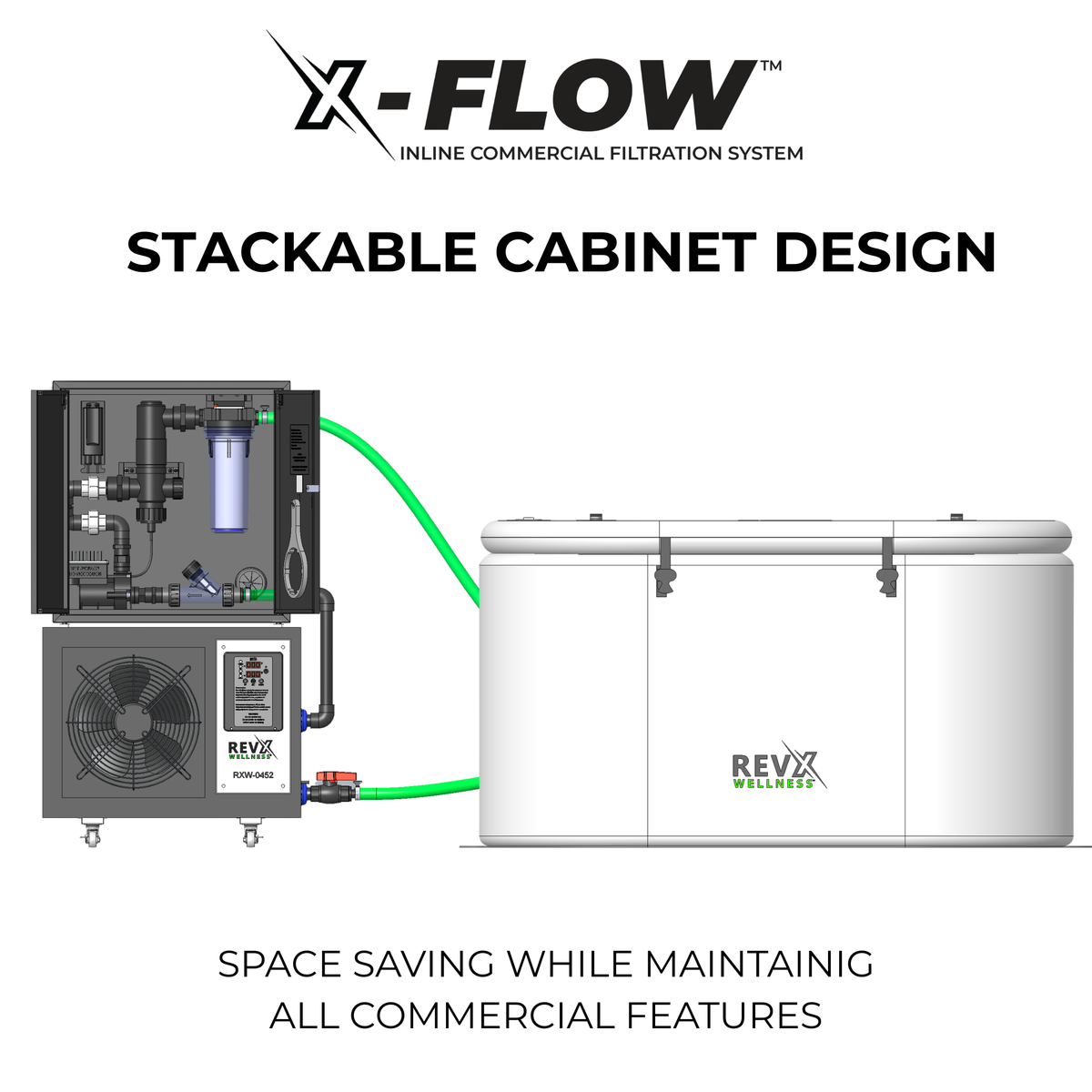

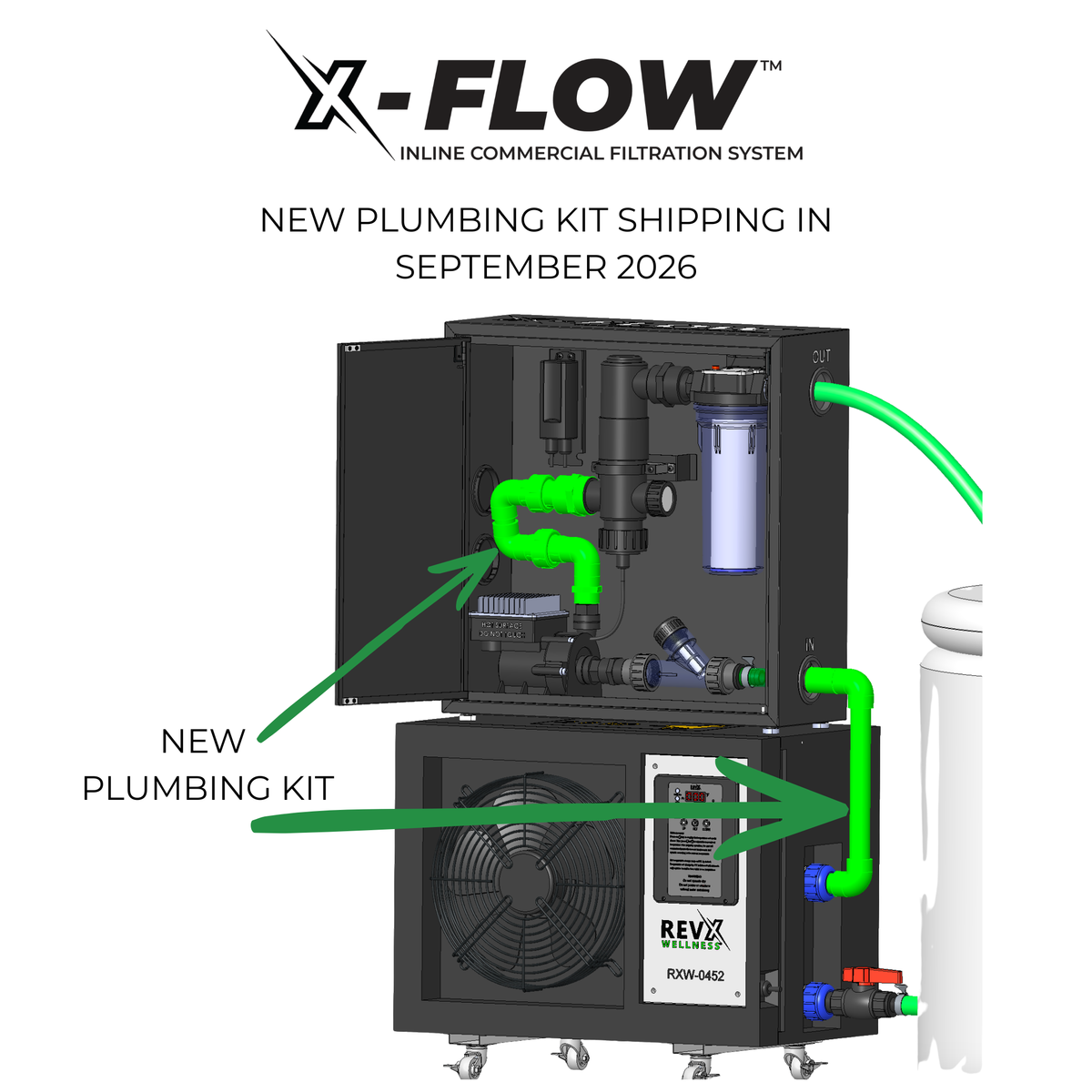

The X-FLOW is supplied as a separate filtration cabinet intended to connect into a closed-loop cold-plunge system. RevX also offers a stackable plumbing kit for compatible chiller configurations.
Warranty
Includes a 1-year warranty.
